P1.86 INDOOR SMALL PITCH CURVED FRONT SERVICE LED DISPLAY

This is LeemanLED’s recently completed indoor curved front maintenance LED display using a flexible small pitch P1.86 module.The advantage of the flexible module is that it can be bent within certain limits for better visual impact.

This display uses a P1.86 small pitch module with a size of 320x160mm. The small pitch of this module allows for a more detailed picture. It uses two 640×1280 and one 960×1280 curved cabinets to form an arc with an area of 2240×1280. The radius of the circle where the arc is located is 3700mm.

This LED display uses five Meanwell LRS-200-5 power supplies and seven Novastar DH7516 receiver cards to meet the needs, which can be used with the customer’s MCTRLR5

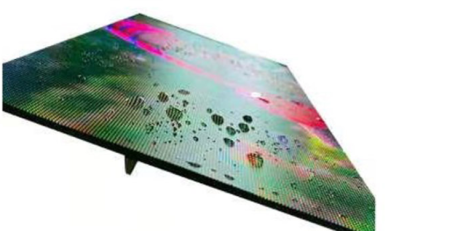

High quality flexible small pitch P1.86 module.

High quality P1 86 Indoor small pitch curved front service LED Display

This is a recently completed indoor curved front maintenance LED display by LeemanLED, using flexible small pitch P1.86 modules.

The advantage of flexible modules is that they can be bent within a certain range for better visual effects.

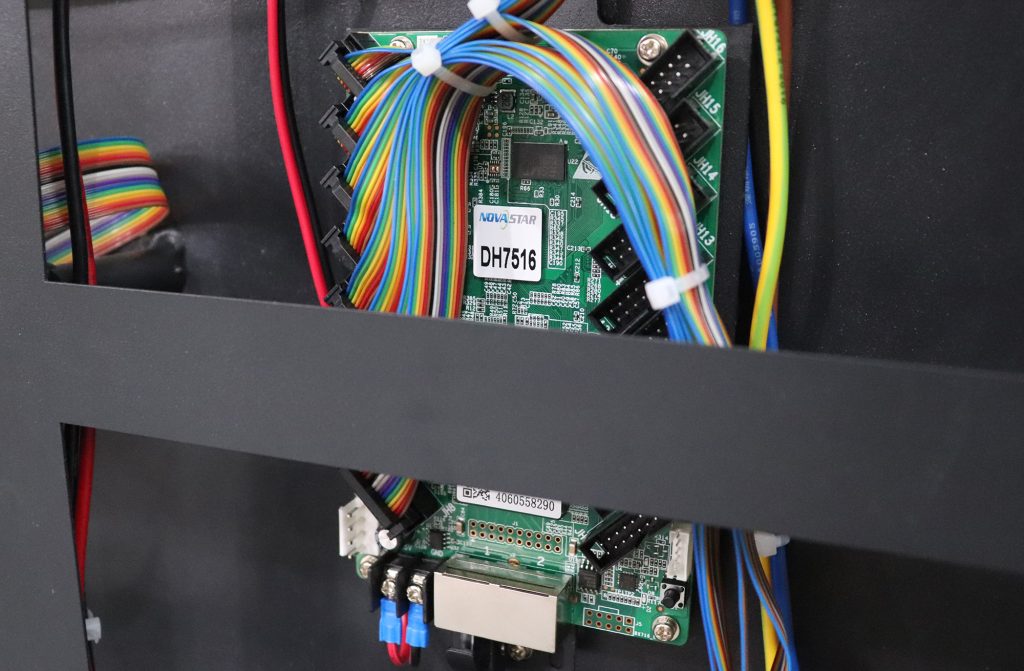

Control Card

The LED display uses seven Novastar DH7516 receiver cards to meet the demand, which can be used with the customer’s MCTRLR5

Power Supply

Use high-quality Meanwell LRS-200-5 LED power supply, automatically adapt to wide voltage.

Input: 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)

Output: 5V 40A  200W

Cooling method

Natural air cooling, no fan required
